Usage

General

After installation PETdeface can be run from as follows:

petdeface /inputfolder --output_dir /outputfolder

Given a PET BIDS dataset like below:

tree /inputfolder
.
├── README
├── dataset_description.json
└── sub-PS50
    ├── anat
    │   ├── sub-PS50_T1w.json
    │   └── sub-PS50_T1w.nii
    ├── ses-baseline
    │   └── pet
    │       ├── sub-PS50_ses-baseline_pet.json
    │       └── sub-PS50_ses-baseline_pet.nii.gz
    └── ses-blocked
        └── pet
            ├── sub-PS50_ses-blocked_pet.json
            └── sub-PS50_ses-blocked_pet.nii.gz

6 directories, 8 files

The following output will be produced:

tree /outputfolder
/outputfolder
├── README
├── dataset_description.json
├── derivatives
│   └── petdeface
│       └── sub-PS50
│           ├── anat
│           │   ├── sub-PS50_T1w_defacemask.nii
│           │   ├── sub-PS50_desc-faceafter_T1w.png
│           │   └── sub-PS50_desc-facebefore_T1w.png
│           ├── ses-baseline
│           │   └── pet
│           │       └── sub-PS50_ses-baseline_desc-pet2anat_pet.lta
│           └── ses-blocked
│               └── pet
│                   └── sub-PS50_ses-blocked_desc-pet2anat_pet.lta
└── sub-PS50
    ├── anat
    │   ├── sub-PS50_T1w.json
    │   └── sub-PS50_T1w.nii
    ├── ses-baseline
    │   └── pet
    │       ├── sub-PS50_ses-baseline_pet.json
    │       └── sub-PS50_ses-baseline_pet.nii.gz
    └── ses-blocked
        └── pet
            ├── sub-PS50_ses-blocked_pet.json
            └── sub-PS50_ses-blocked_pet.nii.gz

14 directories, 13 files

Previously faced files are replaced with defaced images while the registration, mask files, and before and after photos are stored in the derivatives folder.

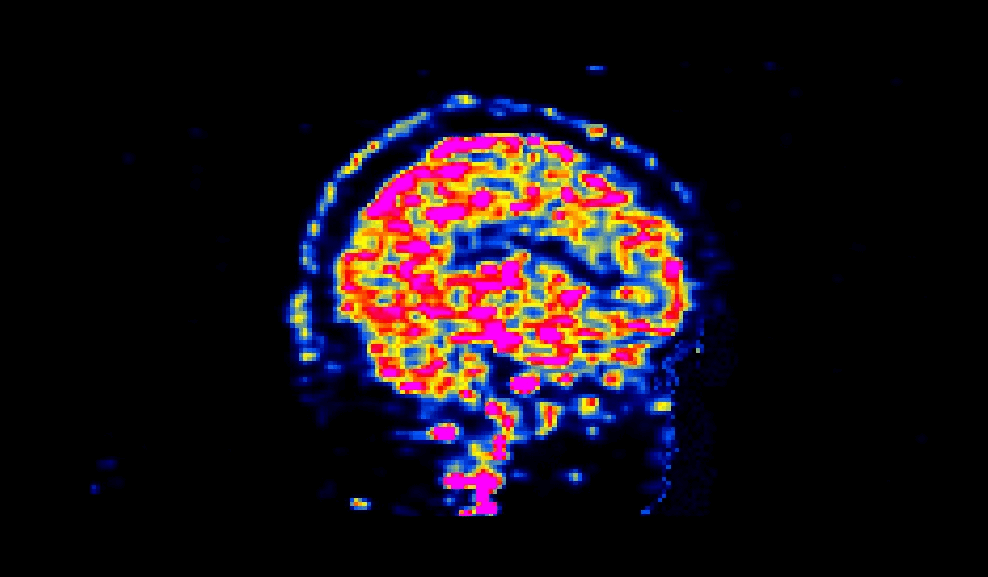

When viewed, a succesfully defaced PET image will have varying intensities in the face region, as shown below:

_images/sagittal.gif

The number of processors made available to PETdeface can be set by the –n_procs flag e.g.:

petdeface /inputfolder /outputfolder --n_procs 4

Additional options can be found in the help menu:

petdeface -h
usage: petdeface.py [-h] [--anat_only] [--participant_label PARTICIPANT_LABEL [PARTICIPANT_LABEL ...]] [--docker] [--singularity] [--n_procs N_PROCS]
                [--skip_bids_validator] [--version] [--placement PLACEMENT] [--remove_existing] [--preview_pics]
                [--participant_label_exclude participant_label_exclude [participant_label_exclude ...]] [--session_label SESSION [SESSION ...]]
                [--session_label_exclude session_label_exclude [session_label_exclude ...]]
                bids_dir [output_dir] [analysis_level]

PetDeface

positional arguments:

bids_dir The directory with the input dataset output_dir The directory where the output files should be stored, if not supplied will default to <bids_dir>/derivatives/petdeface analysis_level This BIDS app always operates at the participant level, if this argument is changed it will be ignored and run as a participant level

analysis

options:
-h, --help

show this help message and exit

--anat_only, -a

Only deface anatomical images

–participant_label PARTICIPANT_LABEL [PARTICIPANT_LABEL …], -pl PARTICIPANT_LABEL [PARTICIPANT_LABEL …]

The label(s) of the participant/subject to be processed. When specifying multiple subjects separate them with spaces.

--docker, -d

Run in docker container

--singularity, -si

Run in singularity container

--n_procs N_PROCS

Number of processors to use when running the workflow

–skip_bids_validator –version, -v show program’s version number and exit –placement PLACEMENT, -p PLACEMENT

Where to place the defaced images. Options are ‘adjacent’: next to the bids_dir (default) in a folder appended with _defaced’inplace’: defaces the dataset in place, e.g. replaces faced PET and T1w images w/ defaced at bids_dir’derivatives’: does all of the defacing within the derivatives folder in bids_dir.

--remove_existing, -r

Remove existing output files in output_dir.

--preview_pics

Create preview pictures of defacing, defaults to false for docker

–participant_label_exclude participant_label_exclude [participant_label_exclude …]

Exclude a subject(s) from the defacing workflow. e.g. –participant_label_exclude sub-01 sub-02

–session_label SESSION [SESSION …]

Select only a specific session(s) to include in the defacing workflow

–session_label_exclude session_label_exclude [session_label_exclude …]

Select a specific session(s) to exclude from the defacing workflow

--use_template_anat

Use template anatomical image when no T1w is available for PET scans. Options: ‘t1’ (included T1w template), ‘mni’ (MNI template), or ‘pet’ (averaged PET image).

--open_browser

Following defacing this flag will open the browser to view the defacing results

--qa-port QA_PORT

Port for NIfTI preview server (default: 8000)

Docker Based

PETdeface can be run in a docker container using the –docker flag:

petdeface /inputfolder --output_dir /outputfolder --docker

Alternatively, if one is unable to install PETdeface from source or PIP, but can execute running a docker image they can run this pipeline usin the syntax below:

docker run --user=$UID:$GID -a stderr -a stdout --rm \
-v /Data/faced_pet_data/:/input \
-v /Data/defaced_pet_data/:/output \
-v /home/user/freesurfer/license.txt:/opt/freesurfer/license.txt \
--platform linux/amd64 \
petdeface:latest  /input \
--output_dir /output \
--n_procs 16 \
--skip_bids_validator \
--placement adjacent \
--user=$UID:$GID \
system_platform=Linux

One needs to create 3 bind mounts to the docker container when running PETdeface directly from docker:

  1. /input needs to mounted to the input BIDS dataset on the host machine

  2. /output needs to be mounted to the output directory on the host machine

  3. /opt/freesurfer/license.txt needs to be mounted to the freesurfer license file on the host machine

If one is running PETdeface on a linux machine and desires non-root execution of the container, the --user flag needs to be set to the UID and GID of the user running the container.

Of course all of the above is done automatically when running PETdeface using the --docker flag.

Singularity Based

PETdeface can also be run using singularity, however one will need access to the internet/dockerhub as it relies on being able to retrieve the docker image from dockerhub. The syntax is as follows:

petdeface /inputfolder --output_dir /outputfolder --singularity

Running petdeface in singularity will generate then execute a singularity command that will pull the docker image from dockerhub and run the pipeline.

singularity exec -e –bind license.txt:/opt/freesurfer/license.txt docker://openneuropet/petdeface:latest petdeface /inputfolder –output_dir /outputfolder –n_procs 2 –placement adjacent

PETdeface will do it’s best to locate a valid FreeSurfer license file on the host machine and bind it to the container by checking FREESURFER_HOME and FREESURFER_LICENSE environment variables. If you receive an error message relating to the FreeSurfer license file, try setting and exporting the FREESURFER_LICENSE environment variable to the location of the FreeSurfer license file on the host machine.

Template Anatomical Images

When PET scans lack corresponding T1w anatomical images, PETdeface can use template anatomical images for registration and defacing. Three options are available:

  • `–use_template_anat t1`: Uses a T1w template included with the PETdeface library

  • `–use_template_anat mni`: Uses the MNI standard brain template

  • `–use_template_anat pet`: Creates a template by averaging a subjects PET image and using that averaged image in place of a T1 image

Important: When using template anatomical images, it’s crucial to validate the defacing quality. Inspect the output using the generated HTML report (with –open_browser) or a NIfTI viewer to ensure the defacing is valid for your data.

Recommended workflow for subjects missing T1w images:

  1. First, exclude subjects missing T1w using –participant_label_exclude

  2. Run defacing on subjects with T1w images

  3. Then run defacing separately on subjects missing T1w using –participant_label and test different templates (t1, mni, pet) to determine which works best for your data

Example usage with template anatomical:

petdeface /inputfolder /outputfolder --use_template_anat t1 --n_procs 16

Quality Assessment (QA) Reports

PETdeface includes a comprehensive quality assessment system that generates reports to help validate defacing results. The QA system creates both SVG reports and interactive NIfTI viewers.

QA Report Location

QA reports are automatically generated in the input BIDS directory under derivatives/petdeface/qa/. This includes:

  • SVG reports showing before/after defacing comparisons

  • Interactive HTML viewers for 3D NIfTI visualization

  • An index page linking to all available reports

Running QA Reports

Automatic QA generation:

petdeface /inputfolder /outputfolder --open_browser

Manual QA generation using the separate QA tool:

petdeface-qa /inputfolder --open-browser --start-server

NIfTI Preview Server

For 3D NIfTI visualization, PETdeface can start a local HTTP server to serve NIfTI files. This is required due to browser security restrictions.

Start with server:

petdeface-qa /inputfolder --start-server --open-browser

Custom port:

petdeface-qa /inputfolder --start-server --qa-port 8080

QA Tool Options

The petdeface-qa command provides the following options:

usage: petdeface-qa [-h] bids_dir [--output-dir OUTPUT_DIR]
                    [--open-browser] [--start-server] [--qa-port QA_PORT]

Generate SVG QA reports for PET deface workflow.

positional arguments:
  bids_dir               BIDS directory containing the defaced dataset (with derivatives/petdeface)

options:
  -h, --help            show this help message and exit
  --output-dir OUTPUT_DIR, --output_dir OUTPUT_DIR
                        Output directory for HTML files (default: derivatives/petdeface/qa/)
  --open-browser        Open browser automatically
  --start-server        Start local HTTP server for NIfTI file access (required for NIfTI viewers)
  --qa-port QA_PORT, --qa_port QA_PORT
                        Port for NIfTI preview server (default: 8000)

Note: The NIfTI preview server is required for 3D visualization due to browser CORS restrictions. Keep the terminal running while viewing NIfTI files.
